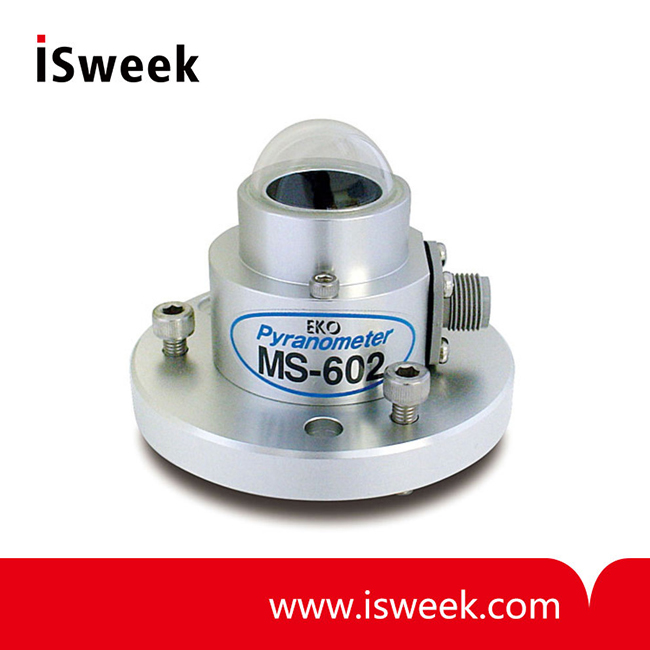

Smallest True Thermopile Pyranometer - MS-602

? ISO 9060 classification: Second Class?
? Response time 95% (sec): 17
? Non-stability (change/year)?: < 1.7 %?
? Operating temperature range (°C)?: - 40 to +80?
? Irradiance range (W/m2)?: 0 - 4000 W/m2?
? Cable length?: 10m?
? Wavelength range?: 285 to 3000 nm?

Model Number: MS-602
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MS-602 Thermopile Pyranometer Description
Within the MS-series the MS-602 pyranometer is the smallest true thermopile pyranometer. It is the most economic measurement solution for global solar radiation measurements capturing the full solar spectrum. MS-602 meets the ISO Second Class performance criteria. However, its outstanding temperature dependency characteristics can only be found on higher class pyranometers. This sensor can be found in many meteorological networks and professional small scale PV sites where solar radiation is taken seriously.

MS-602 Thermopile Pyranometer Features
? Second Class Pyranometer
? Most Economic Thermopile Sensor
? Low Temperature Dependancy Unique In Its Class
? Compact All Weather Sensor

MS-602 Thermopile Pyranometer Specifications

Specifications (Typical)	MS-602
ISO 9060 classification	Second Class
Response time 95% (sec)	17
Zero offset - Thermal radiation (200W/m2)	< 10 W/m2
Zero offset - Temperature change (5K/hr)	< 6 W/m2
Non-stability (change/year)	< 1.7 %
Non-linearity (at 1000W/m2)	< 1.5 %
Directional response (at 1000W/m2)	< 25 W/m2
Spectral selectivity (0.35-1.5μm)	< 1 %
Temp. response (for 50°C band)	< 2 %
Tilt response (at 1000W/m2)	< 2 %
Sensitivity (μV/W?m-2)	Approx. 7
Impedance (Ω)	20 ~ 140
Operating temperature range (°C)	- 40 to +80
Irradiance range (W/m2)	0 - 4000 W/m2
Cable length	10m
Wavelength range	285 to 3000 nm
