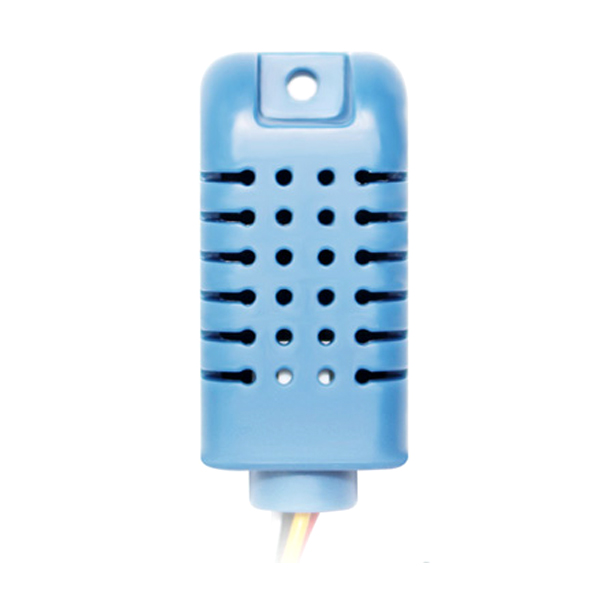

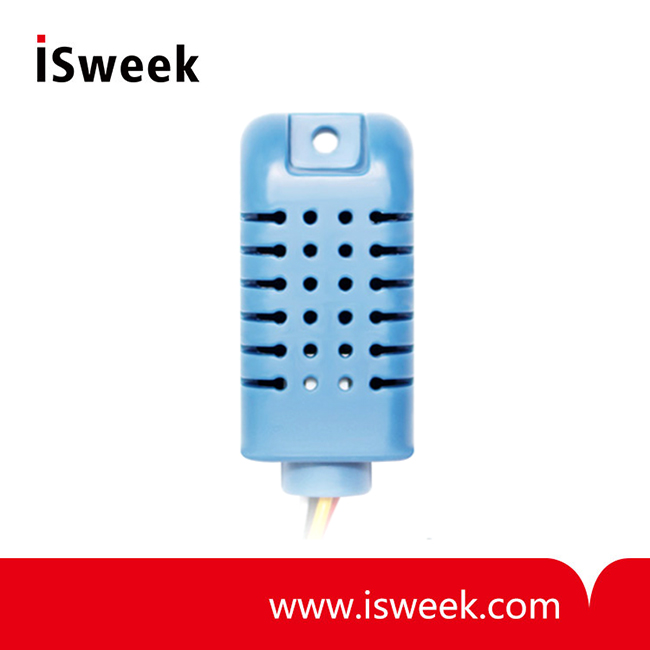

Temperature and Humidity Sensor Module - AM1001/AMT1001

? AM1001 Single wet
? AMT1001 Integrated temperature and humidity
? Humidity Range: 20 ~ 90%RH
? Humidity Accuracy: ±5%RH
? Humidity Repeatability: ±1%RH
? Temperature range?: 0 ~ 60°C
? Supply voltage: 4.75 - 5.25V
? Power Consumption: 2.0mA?
? Output: 0~3V

Model Number: AM1001/AMT1001
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

AM1001/AMT1001 Temperature and Humidity Sensor Module Product Overview
AM1001 / AMT1001 is humidity resistance type temperature and humidity sensors, which AM1001 is a single wet, AMT1001 is integrated temperature and humidity sensor; sensor signals using analog voltage output; This module has high accuracy, high reliability, consistency, and has been with temperature compensation to ensure long-term stability, ease of use and low price and other characteristics, especially suitable for the quality, cost requirements more demanding businesses.

AM1001/AMT1001 Temperature and Humidity Sensor Module Applications
HVAC air conditioners, humidifiers, dehumidifiers, communication, atmospheric environmental monitoring, industrial process control, agriculture, measuring instruments and other applications.

AM1001/AMT1001 Temperature and Humidity Sensor Module Product Highlights
Low power consumption, small size, with temperature compensation, calibration microcontroller linear output, ease of use, low cost, completely interchangeable, long distance signal transmission, precise calibration.

AM1001/AMT1001 Temperature and Humidity Sensor Module Product Selection

Product Model	Product Type	DC voltage	Output	Specifications
AM1001	Resistive	4.75~5.25V DC	0~3V	Single wet
AMT1001	Resistive	4.75~5.25V DC	0~3V	Integrated temperature and humidity

Product Description: AM1001 single wet, AMT1001 for temperature and humidity of a body, a common specification, except single wet and humid merely a body temperature increases, other features like, then not be repeated.

AM1001/AMT1001 Temperature and Humidity Sensor Module Sensor Performance
Relative humidity

Parameters	Conditions	min	typ	max	unit
Range		20		90	%RH
Accuracy	25°C		±5		%RH
Repeatability			±1		%RH
Interchangeability		Completely interchangeable
Response time	1/e(63%)		<5		S
Hysteresis			±0.3		%RH
Drift	Typical values		<0.5		%RH/yr

Temperature
NTC10K temperature sensor is a thermistor. Temperature sensor parameters shown in Table 3.

Specification	Rated zero power resistance (R25)	B (K)	Dissipation factor (mw/°C)	Thermal time constant (S)	Rated Power (mw)	Operating Temperature Range (°C)
SNE103B13435AS150EF	10K?	3435	≥2.5	≤18	150	-40~125

AM1001/AMT1001 Temperature and Humidity Sensor Module Electrical Characteristics

Parameters	Conditions	min	typ	max	unit
Supply voltage		4.75	5.0	5.25	V
Humidity voltage output range		0		3	V
Power Consumption	Measurement		2.0		mA
Humidity sampling period			3		S
Humidity measurement range		20		90	%RH
Temperature range		0		60	°C
Temperature measurement range	NTC10K	0		60	°C
