Ultrasonic Sensors - MA40S4R
1. Compact and light weight.
2. High sensitivity and sound pressure.
- Model Number: MA40S4R
- Data Sheet:
- Quantity:
- - +
Product Specification
MA40S4R Ultrasonic Sensors Specifications:
|
Operating Temperature Range |
-40℃ to 85℃ |
|
Construction |
Open type |
|
Center Frequency |
40kHz |
|
Sensitivity |
-63dB typ. (0dB=10V/Pa) |
|
Directivity |
80deg. (typ.) |
|
Capacitance |
2550pF |
|
Capacitance Tolerance |
±20% |
MA40S4R Ultrasonic Sensors Features:
1. Compact and light weight.
2. High sensitivity and sound pressure.
MA40S4R Ultrasonic Sensors Applications:
Automotive Usage
Infotainment
Other Usage
1.Obstacle detection in home
2.Distance measurement

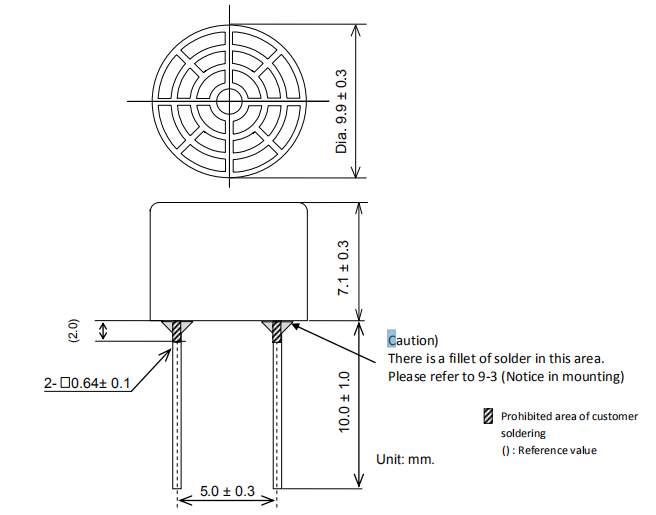

MA40S4R Ultrasonic Sensors Dimensions:
