UV-B Sensor - GUVB-T11GD
- Chip size:0.4mm,TO 46 PKG
- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
- Responsivity: 0.13A/W
- Spectral Detection Range: 220~320nm
- Active area: 0.076mm2
- Model Number: GUVB-T11GD
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GUVB-T11GD UV Sensor Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current
2. GUVB-T11GD UV Sensor Applications
UV-B Lamp Monitoring
UV Index Monitoring
3. GUVB-T11GD UV Sensor Outline Diagrams and Dimensions
4. GUVB-T11GD UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.1μ~100m W/cm2
Soldering Temperature: 260℃

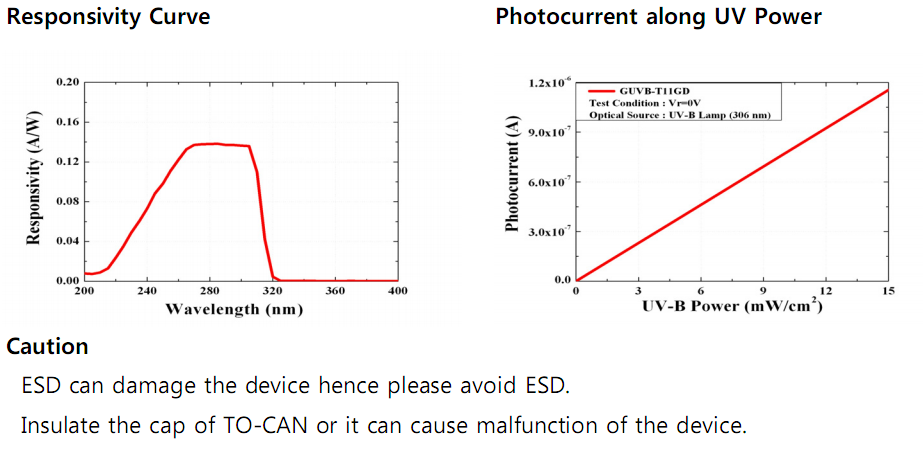

5. GUVB-T11GD UV Sensor Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 76nA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.13A/W
Spectral Detection Range: 220~320nm
Active area: 0.076mm2
