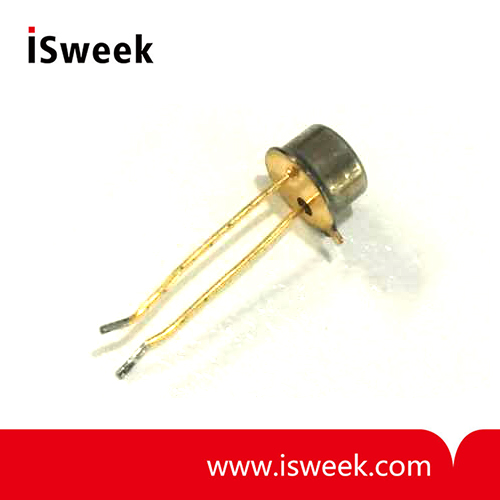

UV Sensor - GUVA-T11GD-L
- Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
- Responsivity: 0.18A/W
- Spectral Detection Range: 220~370nm
- Model Number: GUVA-T11GD-L
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GUVA-T11GD-L?UV Sensor Features
Gallium?Nitride?Based?Material
Schottky-type?Photodiode
Photovoltaic?Mode?Operation
Good?Visible?Blindness
High?Responsivity?&?Low?Dark?Current
2. GUVA-T11GD-L?UV Sensor Applications
Full?UV?Band?Monitoring
UV-A?Lamp?Monitoring

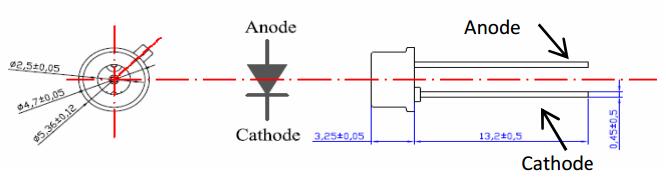

3. GUVA-T11GD-L?UV Sensor Outline?Diagrams?and?Dimensions
4. GUVA-T11GD-L?UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 5V
Forward Current: 1mA
Optical Source Power Range: 0.01μ~100m W/cm2
Soldering Temperature: 260℃
5. GUVA-T11GD-L?UV Sensor Characteristics (at 25℃)
Dark Current: 20nA
Photo Current: 2.8~3.4μA, 3.1μA(Typ)
Temperature Coefficient: 0.05%/℃
Responsivity: 0.18A/W
Spectral Detection Range: 220~370nm
Active area: 1.536mm2
