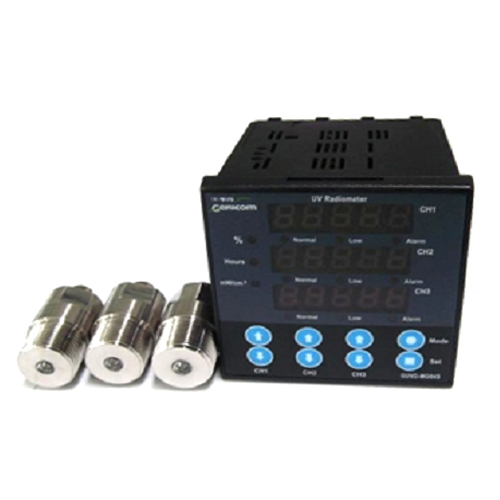

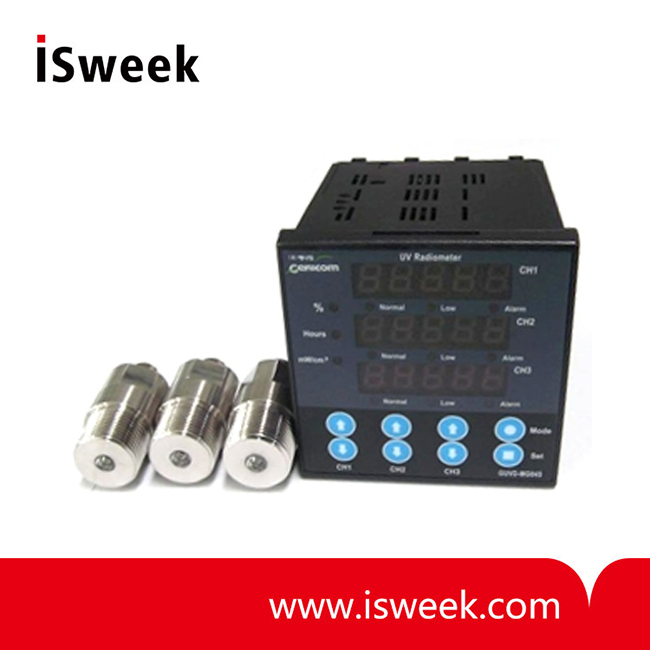

UV Radiometer 4 - GUVC-T11GS4-3LW10
- 3 Channel indicator,3 type display
- 2 type output (Relay and 4-20mA)
- 3 type display
- Thread/Length for Mounting: PT3/4" / 16 mm
- Fixing method: Panel Insertion
- Detection Wavelength Range: 200~280nm
- Siz : 96 mm x 96 mm x 111 mm
- Power : AC 200 ~ 240V (50/60Hz)
- Model Number: GUVC-T11GS4-3LW10
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
GUVC-T11GS4-3LW10 UV Radiometer 4 Description
UV Radiometer 4 is 3 Channel indicator. There are 3 type display, and 2 type output (Relay and 4-20 mA).3 type display is the absolute power, relative power, and accumulative time.
GUVC-T11GS4-3LW10 UV Radiometer 4 Applications
UV Purification (Water)
Water treatment
GUVC-T11GS4-3LW10 UV Radiometer 4 Constitution
Display, Sensor Probe 3 ea, Connection Cable 3 ea (5 m)
GUVC-T11GS4-3LW10 UV Radiometer 4 Sensor Probe Dimensions
|
Thread/Length for Mounting |
Diameter
(mm) |
Window (mn) |
Wrench
Size (mm) |
Length (mm) |
Weight
(g) |
Case Material |
| PT3/4" / 16 mm | 30 | 7 | 26 | 62 | 200 |
STS 316-L |
* Panel Cutting Size : 92 × 92 mm2 (Tolerance : -0, + 0.5 mm )
GUVC-T11GS4-3LW10 UV Radiometer 4 Absolute Maximum Ratings
|
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
|||
|
Operating Temperature |
-30 |
|
85 |
°C |
Sensor Probe |
|
0 |
|
50 |
°C |
Display |
|
|
Working humidy |
35 |
|
85 |
%RH |
|
|
Power Supply |
200 |
|
240 |
VAC |
50/60 ? |
* Connector : IP67, Sensor Probe : 10 bar
GUVC-T11GS4-3LW10 UV Radiometer 4 Electro-Optical Characteristics (at 25°C)
|
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. |
|||
|

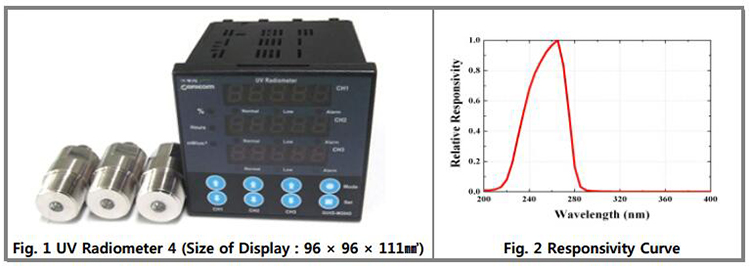

Detection Wavelength Range |
220 |
|
280 |
nm |
|
|
Detection Power Range |
|
200.00 | mW/cm2 |
|
|
GUVC-T11GS4-3LW10 UV Radiometer 4 Function
1. Display : Relative Power (%), Accumulative Time (Hours), and Absolute Power (mW/cm2)
3 Color LED : Green LED (Over C-03), Yellow LED(C-04 ~ C-03), Red LED (Under C-04)
2. Output : DC Current (4-20 mA, 300 ? max load), Relay (NC/NO, 250VAC 3A/30VDC 3A)
