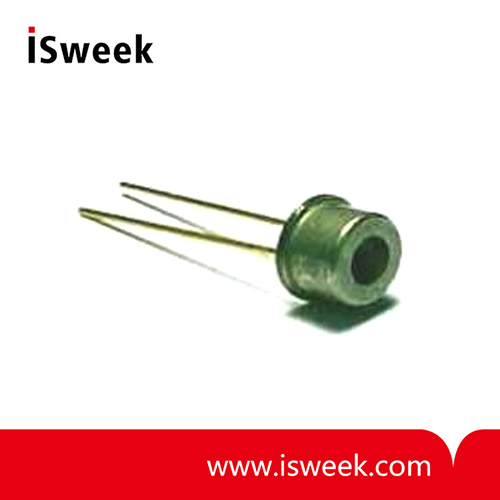

UV Sensor - GUVV-T10GD-L
- Dark Current(Max.): 20nA
- Spectral Detection Range: 230~395nm
- Active area: 1.536mm2
- Chip size of 1.4mm; TO 46 PKG
- Indium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- High Responsivity & Low Dark Current
- Model Number: GUVV-T10GD-L
- Data Sheet:
- Quantity:
- - +
Product Specification
1.?GUVV-T10GD-L?UV Sensor?Features
Indium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Current
2.?GUVV-T10GD-L?UV Sensor?Applications
Full UV Band Monitoring
UV-A Lamp Monitoring
Sterilization Lamp Monitoring
3.?GUVV-T10GD-L?UV Sensor?Outline?Diagrams?and?Dimensions
4. GUVV-T10GD-L?UV Sensor?Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 2V
Forward Current: 1mA
Optical Source Power Range: 0.01μ~100m W/cm2
Soldering Temperature: 260℃

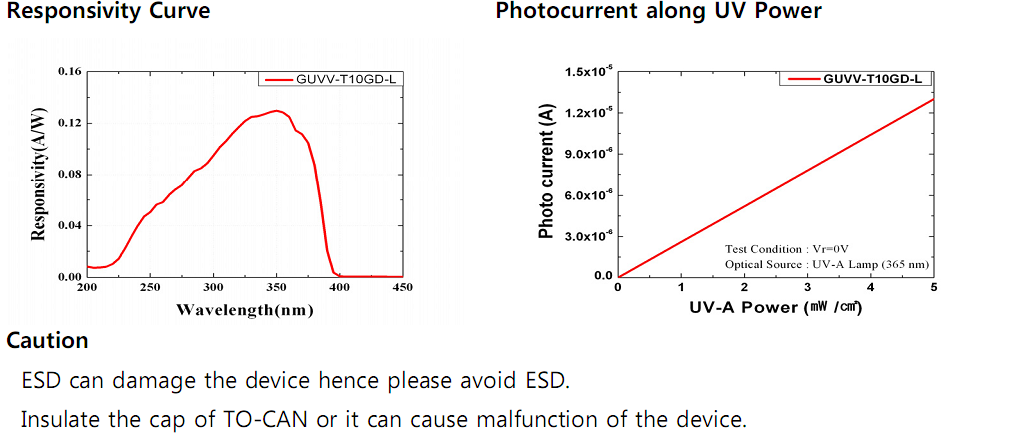

5. GUVV-T10GD-L?UV Sensor?Characteristics (at 25℃)
Dark Current(Max.): 20nA
Photo Current(Typ.): 2.6μA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.13A/W
Spectral Detection Range: 230~395nm
Active area: 1.536mm2
