Product Specification

HG-ESM-01 Energy Saving Module Product overview

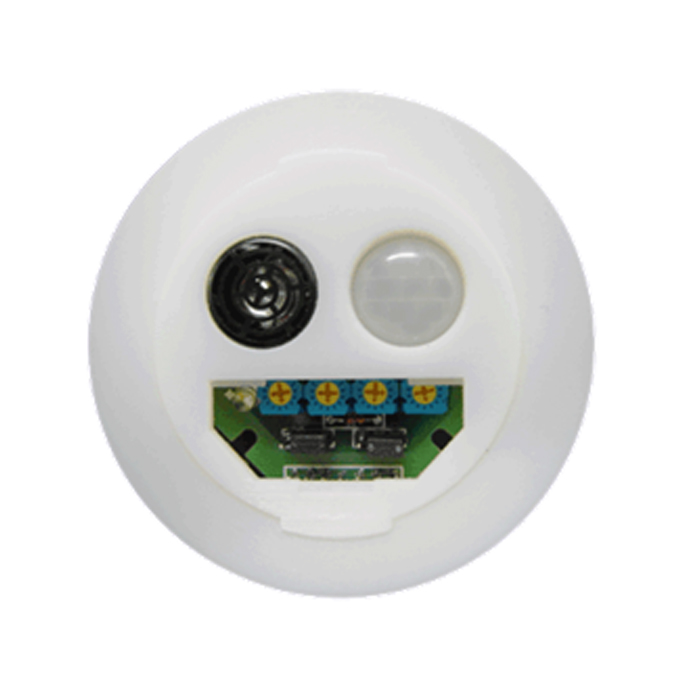

? Hybrid sensor/module with PIR sensor and Ultrasonic Sensor on it.
? Solved the existing “sudden light-off after a certain time” problem.
? by adopting ultrasonic sensor and intelligent operation scenario in the circuit.
? Compact size. (Case dia.: 70mm, PCB dia.: 55mm, Height: 30mm)
? Low power consumption. (Light on: 0.19W, Light off 0.12W, Peak time 0.24W)
? Custom Chip is specially deployed.

HG-ESM-01 Energy Saving Module Features
? Various and convenient function mode
? Can detect both a human being and an object
? Autonomous luminance control
? Fade-out light off function
? No power needed (* the case of OEM built-in and OEM standard type)

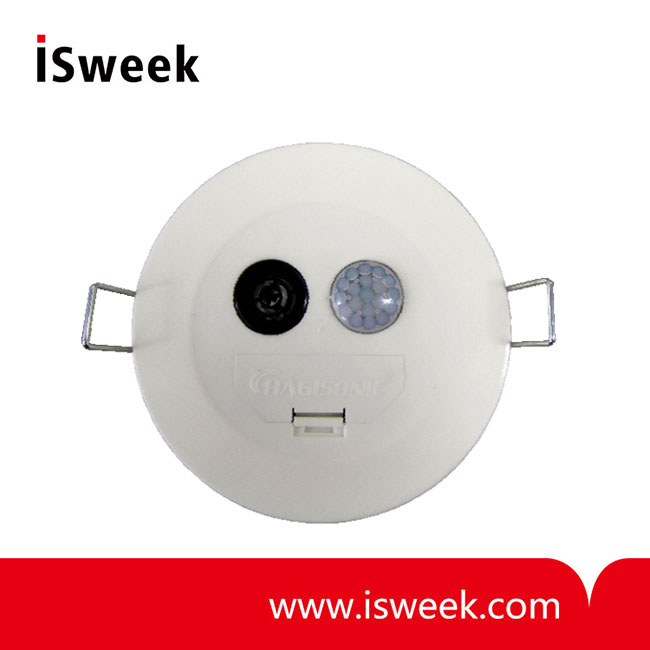

? Ceiling or wall-mounted design

HG-ESM-01 Energy Saving Module Applications
? Special LED lightings (OEM built-in type)
? Underground parking lot lighting control (OEM standalone)
? Electricity control of an electric fan, air-conditioner and other home alliances
(Standard standalone)
? Stand-by power control of computer (monitor), TV and etc. (Standard standalone)
? Security and surveillance applications such as intruder detection etc.
? Corridors, stairways, offices, children’s room, (public) restroom, warehouses etc.

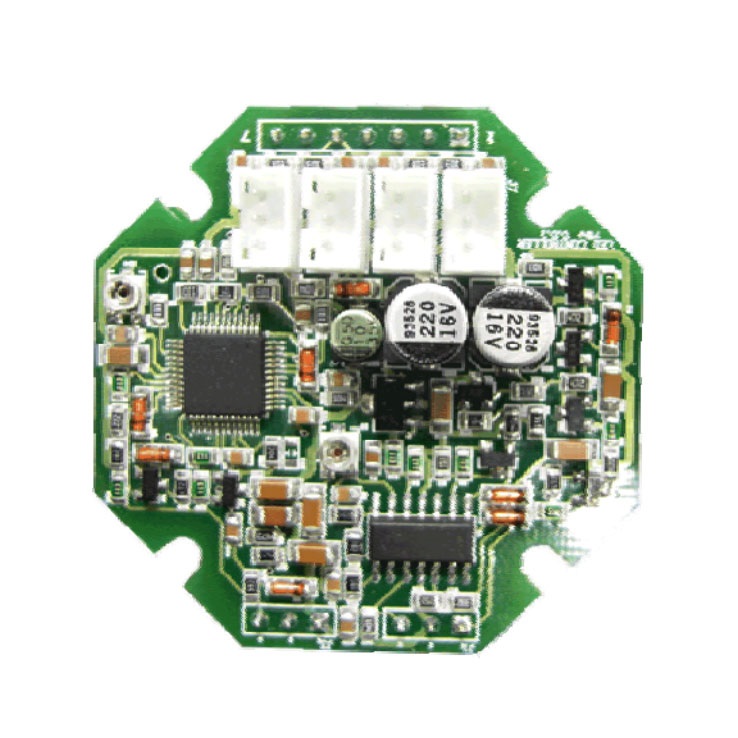

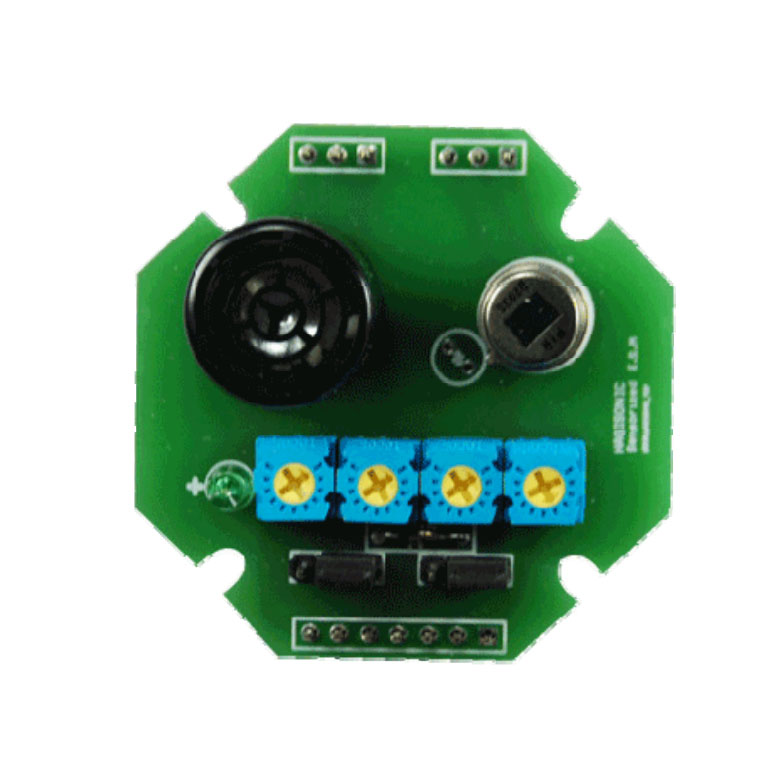

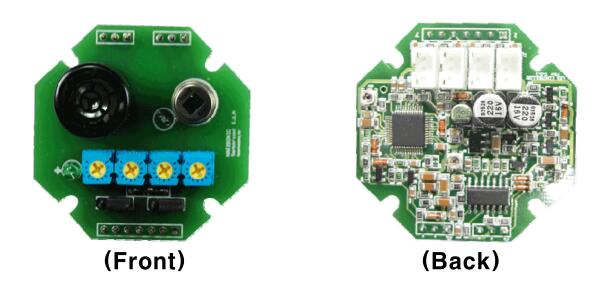

HG-ESM-01 Energy Saving Module Internal PCB configuration
