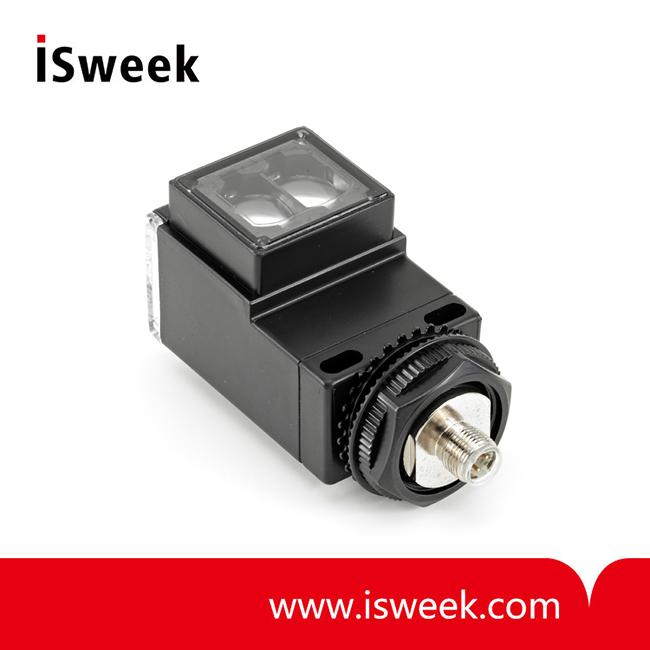

Multi-purpose Photoelectric Sensor - RP74 Series

? Built-in Timer Modes
? Several Mounting Options
? Universal Power Supply
? Long Range
? Through Beam: 61m
? Power Supply?: ?10-40 VDC or 12-?240VDC/24-240 VAC?
? Current Consumption?: 30mA max.??
? Mechanical Protection?: IP67??

Model Number: RP74 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RP74 Series Multi-purpose Photoelectric Sensor Description
? Built-in Timer Modes
? Several Mounting Options
? Universal Power Supply
? Long Range

Modes	Ranges
Through Beam	61m
Retroreflective	9.14m
Diffuse	3.04m
Clear Object Detection	1.2m
Fiber Optic Mode - (range depends on fiber used)

RP74 Series Multi-purpose Photoelectric Sensor

	Through-beam	Diffuse	Retroreflective (Polarized)	Fiber Optic	Clear Object Detection
Operating Range	61m (200 ft.)	3.04m (10 ft.)	9.14m (30 ft.)	Depends on fiber	1.20m (3.9 ft.)
Light Emission	880nm Infrared LED	880nm Red LED	660nm Red LED	880nm Infrared LED	660nm Red LED
DC Models (10-40 VDC) M12 - Recommended Mating Cable: part # R-FS4TZ-V075 (straight), R-FA4TZ-V075 (right-angle)
Emitter	RP74-T061MD-EY9Q4LE
NPN / PNP - with timing	RP74-T061MD- CY9Q4UE-T	RP74-D3040D- CY9Q4UE-T	RP74-L9140D- CY6Q4UE-T	RP74-FGFD- CY9Q4UE-T	RP74-S1200D- CY6Q4UE-T
AC Models (12-240 VDC/24-240 VAC) ?"-20 UNF - Recommended Mating Cable: part # U-FS5TA-V105 (straight), U-FA5TA-V105 (right-angle)
Emitte	RP74-T061MA-EY9Q4LM
SPDT Relay	RP74-T061MR- CY9Q5LM-T	RP74-D3040R- CY9Q5LM-T	RP74-L9140R- CY6Q5LM-T	RP74-FGFR- CY9Q5LM-T	RP74-S1200R- CY6Q5LM-T
Technical Data
Power Supply	10-40 VDC or 12-240VDC/24-240 VAC
Indicator LEDs	Green: Power, Yellow: Output, Red: Margin
Current Consumption	30mA max.
Saturation Voltage	2.5 V max.
Output Current	30mA max.
Response Time	NPN/PNP: 5ms, SPDT Relay: 23ms
Timing Options	No Delay, On Delay, Off Delay, One-shot (for Models With Timing Delay).
Time Settings	Adjustable, 0.1...15s (for Models with Timing Delay)
Mechanical Protection	IP67
Housing Material	Glass Fiber Reinforced Plastic, Cover Gasket Material: Neoprene
Lens Materia	Acrylic
Operating Temp.	25...+55°C (-13...+131°F)
Storage Temp.	-40...+55°C (-40...+131°F)
Reference Standard	EN 60947-5-2
