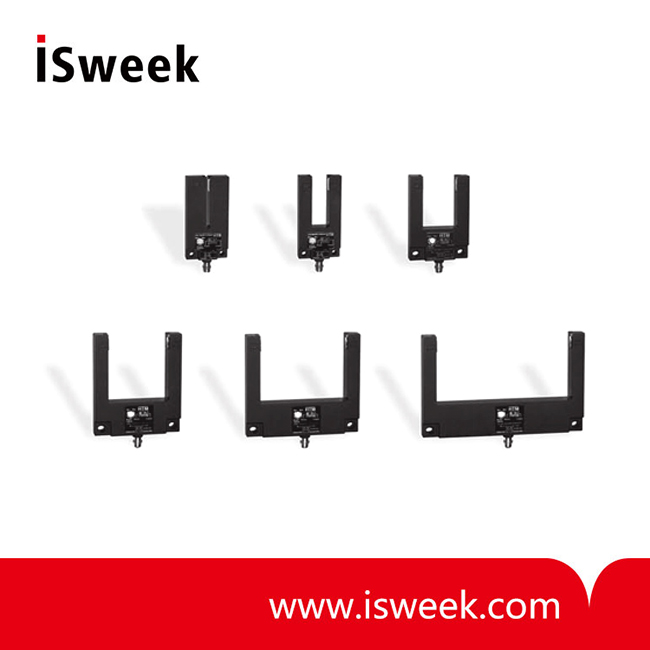

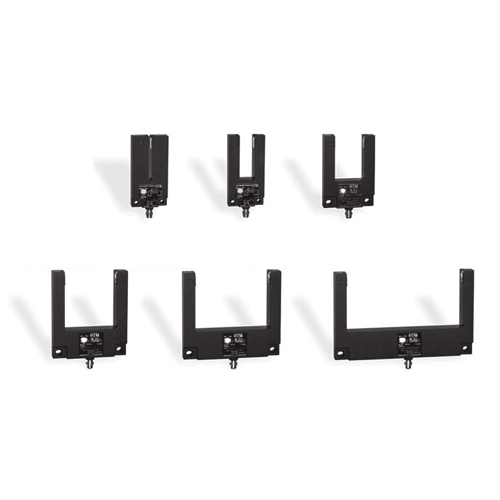

Slot Photoelectric Sensor - U Series

? 2, 15, 30, 50, 80 and 120mm Widths
? High Switching Frequency
? Rugged Die-cast Metal Housings
? Through Beam: 2mm ~ 120mm
? Supply Vo?ltage: 10-30 VDC
? Voltage Drop: < 3V?
? Rated Isolated Voltage: 75 VDC?

Model Number: U Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

U Series Slot Photoelectric Sensor Description:
? 2, 15, 30, 50, 80 and 120mm Widths
? High Switching Frequency
? Rugged Die-cast Metal Housings

Modes Ranges
Through Beam 2mm ~ 120mm

U Series Slot Photoelectric Sensor Part Numbers

NPN (red LED, 660nm)	U02-T0002N-CY6Q4UP	U15-T0015N-CY6Q4UP	U30-T0030N-CY6Q4UP
PNP (red LED, 660nm)	U02-T0002P-CY6Q4UP	U15-T0015P-CY6Q4UP	U30-T0030P-CY6Q4UP
Slot Spacing	2mm	15mm	30mm
Supply Voltage	10-30 VDC
Voltage Drop	< 3V
Rated Isolated Voltage	75 VDC
Rated Operational Current	200mA
No-load Supply Current	≤35mA
Reverse Polarity Protection	Yes
Short-circuit Protection	Yes
On/Off Delay	0.2ms
Operating Frequency	3000Hz		1500Hz
Switching Hysteresis	≤0.1mm
Resolution	0.3mm
Repeatability	0.02mm
Output Function	Light On / Dark On
Permissible Ambient Light	10 K?
Function Indicator	red LED
Operating Temp	-10°C to 60°C (14°F to 140°F)
Mechanical Protection	IP65
Reference Standard	IEC 60947-5-2
Housing Material	Die-cast Zinc
Connection	M8 4 pin connector - Recommended Mating Cable: Part # C-FS4TZ-V075 (straight), or C-FA4TZ-V075 (right-angle)

U Series Slot Photoelectric Sensor Part Numbers

NPN (red LED, 660nm)	U50-T0050N-CY6Q4UP	U80-T0080N-CY6Q4UP	U120-T0120N-CY6Q4UP
PNP (red LED, 660nm)	U50-T0050P-CY6Q4UP	U80-T0080P-CY6Q4UP	U120-T0120P-CY6Q4UP
Slot Spacing	50mm	80mm	120mm
Supply Voltage	10-30 VDC
Voltage Drop	< 3V
Rated Isolated Voltage	75 VDC
Rated Operational Current	200mA
No-load Supply Current	≤35mA
Reverse Polarity Protection	Yes
Short-circuit Protection	Yes
On/Off Delay	0.2ms	0.33ms
Operating Frequency	1500Hz
Switching Hysteresis	≤0.1mm	≤0.2mm
Resolution	0.5mm		0.8mm
Repeatability	0.04mm	0.06mm	0.08mm
Output Function	Light On / Dark On
Permissible Ambient Light	10 K?	5 K?
Function Indicator	red LED
Operating Temp.	-10°C to 60°C (14°F to 140°F)
Mechanical Protection	IP65
Reference Standard	IEC 60947-5-2
Housing Material	Die-cast Zinc
Connection	M8 4 pin connector - Recommended Mating Cable: Part # C-FS4TZ-V075 (straight), or C-FA4TZ-V075 (right-angle)
