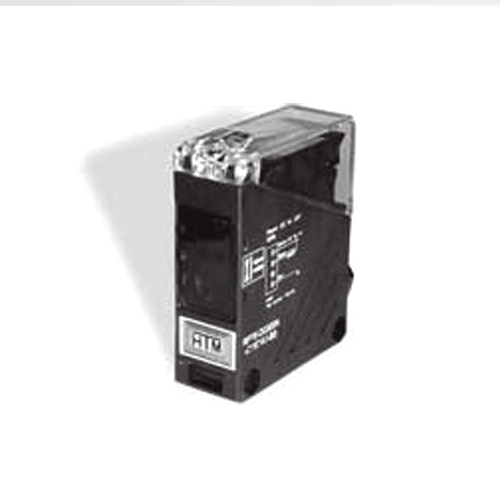

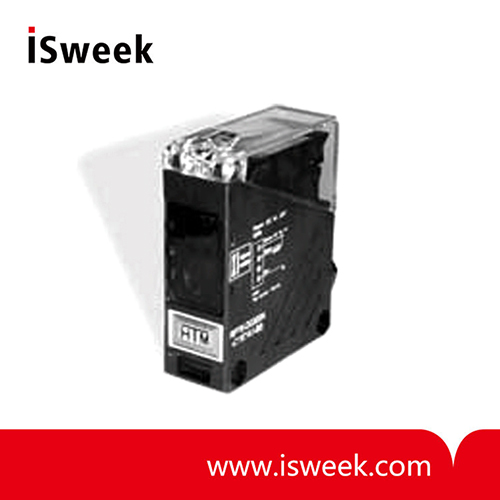

Terminal (Conduit) Mount Photoelectric Sensor - RP76 Series

? Back or Bottom Mounting Option
? Universal Power Supply
? Built-in Timer Modes
? Through Beam: 28m
? Power Supply: DC: 10-30 VDC AC: 20-250 VAC
? Mechanical Protection: IP66 / NEMA 4?
? Operating Temperature: -25°C to +55°C (-13°F to 131°F)?

Model Number: RP76 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RP76 Series Terminal (Conduit) Mount Photoelectric Sensor Description
? Back or Bottom Mounting Option
? Universal Power Supply
? Built-in Timer Modes

Modes	Ranges
Through Beam	28m
Retroreflective	10m
Diffuse with Background Suppression	300mm

RP76 Series Terminal (Conduit) Mount Photoelectric Sensor

	Through-beam	Diffuse	Retroreflective (Polarized)
DC Models
Emitter	RP76-T028MD-EY9T4L
NPN - Timing Delay	RP76-T028MN-CY9T4U-T	RP76-D0300N-CY9T4U-BT	RP76-L010MN-CY6T4U-TP
PNP - Timing Delay	RP76-T028MP-CY9T4U-T	RP76-D0300P-CY9T4U-BT	RP76-L010MP-CY6T4U-TP
AC Models
Emitter	RP76-T028MA-EY9T4L
Relay SPST - Timing Delay	RP76-T028MR-CY9T4L-T	RP76-D0300R-CY9T4L-BT	RP76-L010MR-CY6T4L-TP
Technical Data
Operating Range	28m (91.8 ft.)	0.3m (11.8 in.)	10m (32.8ft.)
Light Emission	880nm Infrared LED		660nm Red LED
Power Supply	DC: 10-30 VDC AC: 20-250 VAC
Current Consumption	DC: <35 mA (no load) AC: <2 VA
Time Options	No Delay, On Delay, Off Delay, One-shot (for Models With Timing Delay)
Time Settings	Adjustable, 0.1...15s (for Models with Timing Delay)
Indicator LEDs	Green: Power, Yellow: Output, Red: Margin / SCP
Housing Material	Glass fiber reinforced plastic
Lens Material	Acrylic
Mechanical Protection	IP66 / NEMA 4
Circuit Protection	Reverse polarity protected (DC Models also have outputs short circuit and over current protected)
Operating Temperature	-25°C to +55°C (-13°F to 131°F)
Storage Temperature	-40°C to +55°C (-40°F to 131°F)
Reference Standard	IEC 60947-5-2
