Three-in-one Insertion Flow Meter - VPFlowScope M

? Three sensors in one instrument
? For compressed air and technical gases
? Ultra compact size and low weight
? Ethernet (Modbus/ TCP)
? RS485 (Modbus RTU)
? 4 … 20 mA linearized, pulse mode or alarm output
? Optional TFT color display

Model Number: VPFlowScope M
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

VPFlowScope M Three-in-one Insertion Flow Meter Description

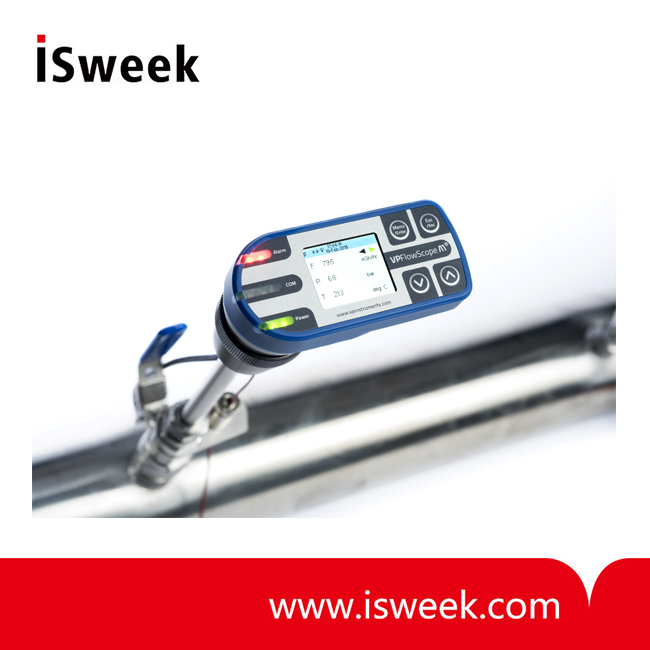

The VPFlowScope M is a three in one insertion flow meter for compressed air and technical gases. It can be installed under pressure and measures flow, pressure and temperature simultaneously. With the introduction of the VPFlowScope M, recalibration becomes history.

Unlike traditional flow meters, the VPFlowScope M does not require traditional recalibration, where you have to ship the unit back. Instead, the VPFlowScope M consists of a transmitter and the patented VPSensorCartridge? which reduces recalibration to a simple exchange.

VPFlowScope M Three-in-one Insertion Flow Meter Features and benefits
? Three sensors in one instrument
? For compressed air and technical gases
? Patented VPSensorCartridge?: no more recalibration required
? Ethernet interface: Industry 4.0/IOT ready
? Ultra compact size and low weight
? Ethernet (Modbus/ TCP)
? RS485 (Modbus RTU)
? 4 … 20 mA linearized, pulse mode or alarm output
? USB interface for configuration and downloading of data log files
? Optional TFT color display
? Optional data logger with more than 6 months @ 1 second interval + cyclic recording
? Bi-directional (optional)

VPFlowScope M Three-in-one Insertion Flow Meter Applications
? Compressed air audits
? Nitrogen and technical gas flow measurements
? Cost allocation
? Leak detection
? Pipe network optimization
? Permanent monitoring

Specifications VPFlowScope M transmitters

Sensor interface
VPSensorCartridge	Proprietary interface, rotational 360 degrees

Display
Display type	1.8" TFT color with auto power save (option)
LED status	LED indicators on all models for power, communication and alarm

Data logger
Memory	At least 6 months @ 1 x per second logging interval for all parameters
Logging mode	Cyclic and start/stop

Outputs
RS485	Modbus RTU
Analogue output	4..20mA output or pulse or alarm (selectable)
USB	Mini USB, behind o-ring sealed cap for configuration
Ethernet	Communication via Modbus TCP and access to built in web server
Wi-Fi	Communication via Modbus TCP and access to built in web server
Wi-Fi radio	2.4GHz 802.11 b/g/n channel 3
Wi-Fi output power	+15dBm (max)

Mechanical & Environmental
Dimensions	50 x 108 x 36 mm \| 1.97 x 4.25 x 1.42 inch
Weight	220 grams \| 7.76 ounces including locking ring
Material	Aluminium, anodized body with polycarbonate cover
O-ring seals	NBR
Protection grade	IP65 \| NEMA 4 when mated to VPSensorCartridge and USB cap tightened
Ambient temperature	0..60°C \| 32 .. 140°F
Ambient humidity	10 - 95%. Avoid condensation at all times

Avoid direct sunlight or radiant heat
Highly corrosive or acid environments should be avoided

Electrical
Supply	12VDC ..24 VDC +10% CLASS 2 (UL)
Power consumption	1 Watt (no flow) 3.5 Watt (full flow) +/- 10%

Certification
CE	EN 60950-1, EN 61326-1, EN 61000-3-2, EN 61000-3-3, EN 61326-1
UL	UL 508

Specifications VPFlowScope M VPSensorCartridges

Flow sensor
Measuring principle	Thermabridge? Thermal Mass Flow sensor
Flow range	0(0.5) ... 150 m _n/sec \| 0 ... 500 sfps
Bi-directional flow	Optional
Accuracy	2% of reading under calibration conditions
Reference conditions	0 °C, 1013.25 mbar \| 32 °F, 14.65 psi
Gases	Compressed air, Nitrogen and inert, non condensing gases
Gas temperature range	0 ... 60 °C \| 0 ... 140 °F

Pressure sensor
Pressure range	0 ... 10 bar \| 0 ... 145 psi gage
Accuracy	+/- 1% FSS (total error band) Temperature compensated

Mechanical & Environmental
Probe Length	340 mm \| 13.4"
Weight	200 grams \| 7.05 ounces
Process connection	Compression fitting, 1/2" NPT, Tapered
Pressure rating	PN10
Protection grade	IP65 \| NEMA 4 when mated to transmitter
Ambient temperature range	0...60 °C \| 32...140 °F, avoid direct sunlight or radiant heat
Wetted materials	Anodized Aluminum, Stainless steel 316, Glass, Epoxy
Corrosion resistance	Highly corrosive or acid environments should be avoided

Electrical
Connection type	VPSensorCartridge proprietary
Power consumption	See transmitter specifications for combined power consumption
