UV-C Sensor - GUVC-S10GD
- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Solar Blindness
- Responsivity: 0.07A/W
- Spectral Detection Range: 220~280nm
- Active area: 0.076mm2
- Model Number: GUVC-S10GD
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GUVC-S10GD UV Sensor Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Solar Blindness
2. GUVC-S10GD UV Sensor Applications
Pure UV-C Monitoring
Sterilization Lamp Monitoring

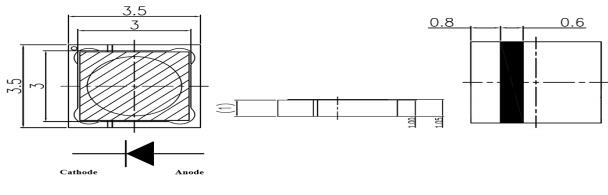

3. GUVC-S10GD UV Sensor Outline Diagrams and Dimensions
4. GUVC-S10GD UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.1μ~100m W/cm2
Soldering Temperature: 260℃

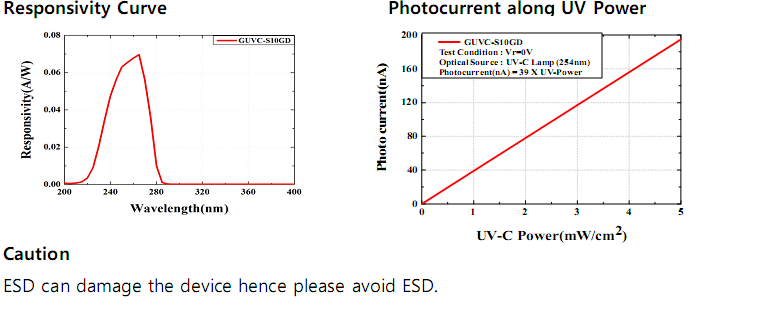

5. GUVC-S10GD UV Sensor Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 39nA
Temperature Coefficient: -0.07%/℃
Responsivity: 0.07A/W
Spectral Detection Range: 220~280nm
Active area: 0.076mm2
