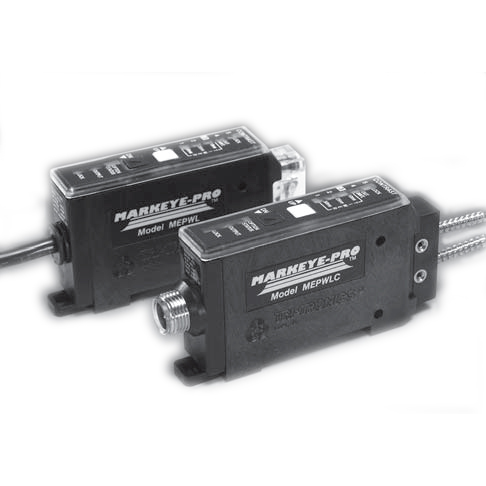

MARKEYE-PRO High-Resolution Registration Mark Sensor - MEP Series

? Supply Voltage: 10 to 30 VDC, Polarity Protected
? Current Requirements: 45 milliamps (exclusive of load)?
? Ambient Temperature: -40°C to 70°C
? MEP Light/Dark state response: 175 microseconds
? MEP45 Light/Dark state response: 45 microseconds?
? Industry Ratings: NEMA 4X, 6P, IP67

Model Number: MEP Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

MARKEYE-PRO Registration Mark Sensor Description
The MARKEYE-PRO sensor detects printed registration marks on a continuous web running at high-speeds. It delivers high-resolution by utilizing the broadband characteristics of a white light LED for detecting the greatest variety of color combinations on any color background. The "one-touch" AUTOSET routine can be accomplished by pushing the appropriate button on the sensor or from a remote push-button switch. Simply put the background in view and press the black button if the background is darker than the registration mark or press the white button if the background is lighter than the registration mark. Utilize either apertured V-axis (V4A) lens or fiber optic light guides. We recommend using glass fiber optic light guides for detecting low contrast registration marks. Plastic light guides can also be used as well as a variety of fiber optic accessory lenses to enhance sensing performance.

MARKEYE-PRO Registration Mark Sensor Specifications

SUPPLY VOLTAGE	? 10 to 30 VDC ? Polarity Protected
CURRENT REQUIREMENTS	? 45 milliamps (exclusive of load)
OUTPUT TRANSISTORS	? (1) NPN and (1) PNP sensor output transistors ? Outputs sink or source up to 150 milliamps (current limit) ? All outputs are continuously short circuit protected
REMOTE AUTOSET INPUT	? Opto-isolated momentary sinking input (10 milliamps)
RESPONSE TIME	? MEP: Light/Dark state response = 175 microseconds ? MEP45: Light/Dark state response = 45 microseconds
LED LIGHT SOURCE	? White LED provides detection of registration marks of the widest variations of contrasting colors
PUSH BUTTON CONTROL	? AUTOSET? ? Manual Adjustments ? Set status of 5 options: 5) Lock, 4) Output Invert, and Pulse Stretchers 3) 10ms, 2) 25ms, and 1) 50ms
HYSTERESIS	? Set for high resolution … less than one bar on the contrast indicator
LIGHT IMMUNITY	? Responds to sensor's pulsed modulated light source … immune to most ambient light and strobes, including indirect sunlight
DIAGNOSTIC INDICATORS	? 5-LED Bargraph functions in one of two modes: 1. Contrast Indicator… Displays scaled reading ofsensor's response to contrasting light levels (light to dark) 2. Status Indicator…Displays status of 5 selectable options ? Red LED output indicator … Illuminates when the sensor's output transistors are "ON" NOTE: If Output LED flashes, a short circuit condition exists ? Amber LED…Illuminates when in the options select mode ? Yellow LED…Illuminates when Lock feature is activated
AMBIENT TEMPERATURE	? -40°C to 70°C (-40°F to 158°F)
RUGGED CONSTRUCTION	? Chemical resistant high impact polycarbonate housing ? Industry Ratings: NEMA 4X, 6P, IP67

MARKEYE-PRO Registration Mark Sensor Modles & Ranges

Model	Description
5-Conductor, Cabled attached:
MEP45WL	45μs Response Time, White LED
MEPWL	175μs Response Time, White LED
5-Pin Micro Connector (M12):
MEP45WLC	45μs Response Time, White LED
MEPWLC	175μs Response Time, White LED

1. Select Sensor Model: MEP45, MEP
2. White light source: WL
3. Select Connector
Blank - 6' (1.8m) Cable
C - Connector
4. Select Optical Block based on sensing mode:
F4 - Glass Fibers 0.25" (6.4mm) to 0.50" (12.7mm) range
F5 - Plastic Fibers 0.25" (6.4mm) range
V4A - Apertured V-Axis 0.75" (19.1mm) to 1.0" (25.4mm) range
