SMARTEYE Stealth-UV Luminescence Sensor - UVS Series

? Supply Voltage: 10 to 30 VDC
? Current Requirements:
UVS-1, UVS-2, UVS-3 & UVS-4: 50 mA
UVS-5 & UVS-6: 65 mA (exclusive of load)
? Analog Output: 4- 20 mA
? Ambient Temperature: -15°C to +70°C (5°F to 158°F)
? UV LED, 375 nm Wavelength
? Response Time: UVS-1 to 4: 200μs; UVS-5: 750μs; UVS-6: 300μs

Model Number: UVS Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SMARTEYE Stealth-UV Luminescence Sensor Description

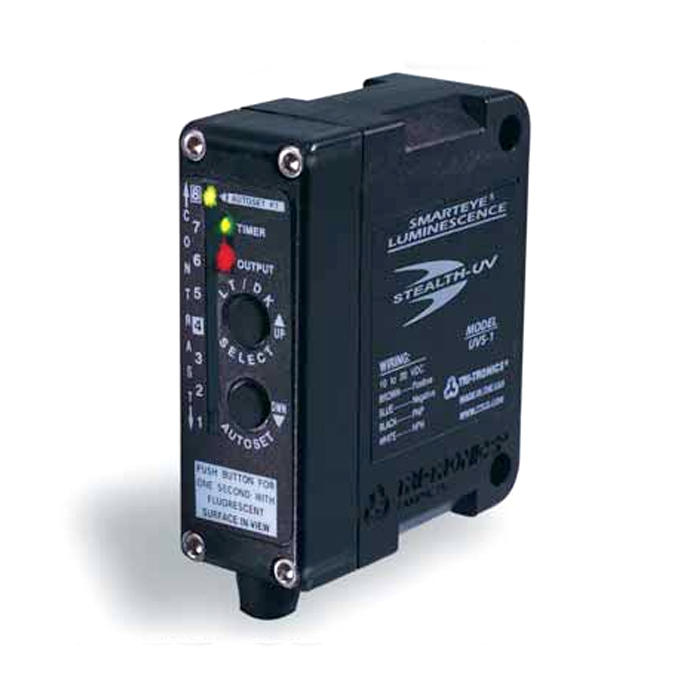

The SMARTEYE^? STEALTH-UV? sensor is a special purpose sensor designed to detect the presence of invisible fluorescent materials contained in or added to paper, chalks, inks, paint, greases, glue, or optical brighteners found in labels, tape, string, etc. The sensor contains an ultraviolet (UV) solid state light source that is used to excite the luminescent materials to fluoresce in the visible range. The sensor's detector then responds to the visible fluorescing light.

SMARTEYE Stealth-UV Luminescence Sensor?Advantage
? Wide Selection of Ranges - 1/2" to 24"
? Unique Fiberoptic Model
? Forgiving Depth-of-Focus Tolerance - Eliminates frequent adjustments
? Distinguishes between low UV Contrast Levels
? High Performance at an Economical Price
? Digital and Analog Models

SMARTEYE Stealth-UV Luminescence Sensor?Typical Applications
? Missing labels or label positions on bottles and containers
? Invisible registration marks for positioning, printing and cutting
? LOCTITE P/N 24221 on machine threads or bolts
? Tamperproof seals
? Marks (chalk) for grading or sorting lumber, hardwood, and tile products
? Pull tabs on packages

SMARTEYE Stealth-UV Luminescence Sensor?Specifications

SUPPLY VOLTAGE	? 10 to 30 VDC ? Polarity Protected
CURRENT REQUIREMENTS	? UVS-1, UVS-2, UVS-3 & UVS-4: 50 mA ? UVS-5 & UVS-6: 65 mA (exclusive of load)
TRANSISTOR OUTPUT	? (1) NPN and (1) PNP output transistor: ? NPN: Sink up to 150 mA ? PNP: Source up to 150 mA ? Continuous short circuit protected ? Outputs protected from pulsing during power up
ANALOG OUTPUT	? 4 - 20 mA (Consult factory for specifications)
RESPONSE TIME	? Varies by sensor model
AMBIENT TEMPERATURE	? -15°C to +70°C (5°F to 158°F)
LIGHT IMMUNITY	? Responds to sensor’s pulse modulated light source,?resulting in high immunity to most ambient light and?strobes, including indirect sunlight
RUGGED CONSTRUCTION	? Chemical resistant, high impact polycarbonate?housing, standard acrylic or optional glass window ? Industry Ratings: NEMA 4, IP67
PUSH BUTTON CONTROL	? "One-Touch" AUTOSET TM push-button setup ? Tweak adjustments with "up" or "down"?buttons ? Selection of Light/Dark operation ? Enable/Disable pulse stretcher
HYSTERESIS	? 2 bars as displayed on Contrast Indicator: ??Light State switch = 5 ??Dark State Switch = 3
DIAGNOSTIC INDICATORS	? Contrast Indicator – Display scaled reading of sensor's?response to contrasting light levels (Light vs. Dark)?on an 8 bar LED display ? RED LED OUTPUT INDICATOR Illuminates when the?sensor's output transistors are?"ON"?NOTE: If Output?LED flashes, a short circuit condition exists ? GREEN LED TIMER INDICATOR Illuminates when the?15 millisecond pulse stretcher timer is enabled
LIGHT SOURCE	? UV LED, 375 nm Wavelength

SMARTEYE Stealth-UV Luminescence Sensor?How To Specify

Coaxial
	Focal Distance	Spot Size	Usable Range	Response Time
UVS-1	0.50" (12.7 mm)	0.067" (1.7 mm)	0 to 5.0" (0 to 127 mm)	200 microseconds
UVS-2	1.0" (25.4 mm)	0.086" (2.2 mm)	0 to 7.5" (0 to 190.5 mm)	200 microseconds
UVS-3	2.0" (50.8 mm)	0.128" (3.25 mm)	0 to 10.0" (0 to 254 mm)	200 microseconds
UVS-4	4.0" (101.6 mm)	0.16" (4.1 mm)	0 to 13.0" (0 to 330 mm)	200 microseconds

Convergent
	Focal Distance	Spot Size	Usable Range	Response Time
UVS-5	8.0" (203 mm)	1.0" (25.4 mm)	2.0 to 24.0" (50.8 to 609.6 mm)	750 microseconds

Fiberoptic
	Micro Polished	BF-U-36TUV	Usable Range	Response Time
UVS-6	Fiberoptic Light Guide	0.156" Bundle Size (4.0 mm)	Up to 2.5" (63.5 mm)	350 microseconds
